Merida One Sixty 500
Merida One Sixty 500
MBUK and Bike Radar Enduro Bike Of The Year!!!

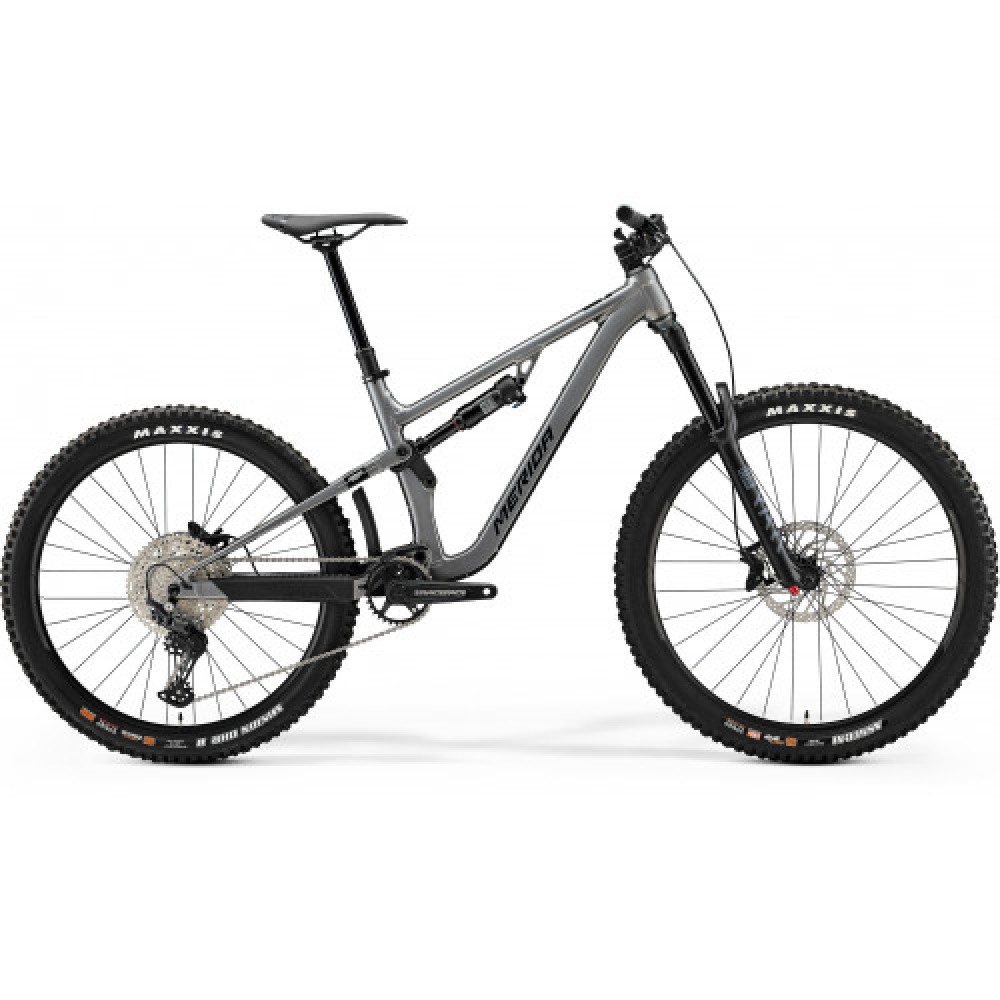

The all-new One-Sixty 500 gets a radical new geometry and suspension design in a tough all-aluminium frame package, paired to components that deliver rock-solid performance and ironclad value.
A RockShox Yari fork and Deluxe shock can take the rough with the rougher, while the four-piston Shimano brakes and wide-range drivetrain are tough and consistent. The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too.
Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5” setup (171mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.
Highlights:
- Full aluminium frame with FAST kinematic suspension and radical new enduro geometry
- Mixed or full 29er wheel set up with Agilometer sizing
- RockShox Yari and Deluxe suspension, proven Shimano 11-speed drivetrain
- Maxxis Double Down front and rear tyres
- 200mm dropper post on XL/L/M, 150mm on S, 125mm on XS
- Powerful 4-piston hydraulic disc brakes
Rock Shox Deluxe shock with 170mm RockShox Yari RC fork. 1 x 11 Shimano Deore drivetrain with Race Face Ride chainset, Shimano Deore 4 pot hydraulic disc brakes and dropper post.
|
FRAME
|
Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
|
|
SHOCK
|
RockShox Deluxe Select+; platform
|
|
FORK
|
RockShox Yari RC; Air; 170mm travel; Tapered; 42mm fork offset; Max. tyre size: 29 x 2.8"
|
|
GEARS
|
11
|
|
SHIFTERS
|
Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
|
|
REAR DERAILLEUR
|
Shimano Deore M6100 Shadow+ SGS
|
|
BOTTOM BRACKET
|
Race Face BSA 68/73 – 24mm
|
|
CHAIN
|
KMC X11
|
|
CHAINSET
|
Race Face Ride; 32 tooth chainset. Merida Expert TR ISCG05 chainguide. Crank length: 170mm
|
|
CASSETTE
|
Shimano Deore M5100; 11-51 teeth; 11 speed
|
|
BRAKE LEVER
|
Shimano Deore M6120
|
|
FRONT BRAKE
|
Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
|
|
REAR BRAKE
|
Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
|
|
Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
|
|
|
GRIP
|
Merida Expert EC
|
|
HANDLEBAR
|
Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
|
|
STEM
|
Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
|
|
HEAD SET
|
Merida 8158 1-1/8"-1.5" cartridge bearing
|
|
Merida 8158 1-1/8"-1.5" cartridge bearing
|
|
|
SADDLE
|
Merida Comp SL; V-mount
|
|
SEAT POST
|
Merida Expert TR II; 34.9mm diameter; in-line; Drop: 125mm (XS), 150mm (S), 200mm (M/L/XL)
|
|
WHEEL SIZE
|
29" / 27.5"
|
|
RIMS
|
Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); Rear 27.5" for XS/S & M, 29" for L & XL
|
|
SPOKES
|
Double Butted Black stainless
|
|
FRONT HUB
|
Shimano MT400-B; 110x15mm; 32 spokes; Center lock
|
|
REAR HUB
|
Shimano MT400-B; 148x12mm; 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key
|
|
FRONT TYRE
|
Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR DD 3C MaxxGrip
|
|
REAR TYRE
|
Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra
|
|
COLOUR
|
Grey
|
PRICES
| Option | Price (inc VAT) | Stock |
|---|---|---|
| Colour:Grey, Size:Long | £2,750.00 | In stock |
| Colour:Grey, Size:Mid | £2,750.00 | In stock |
