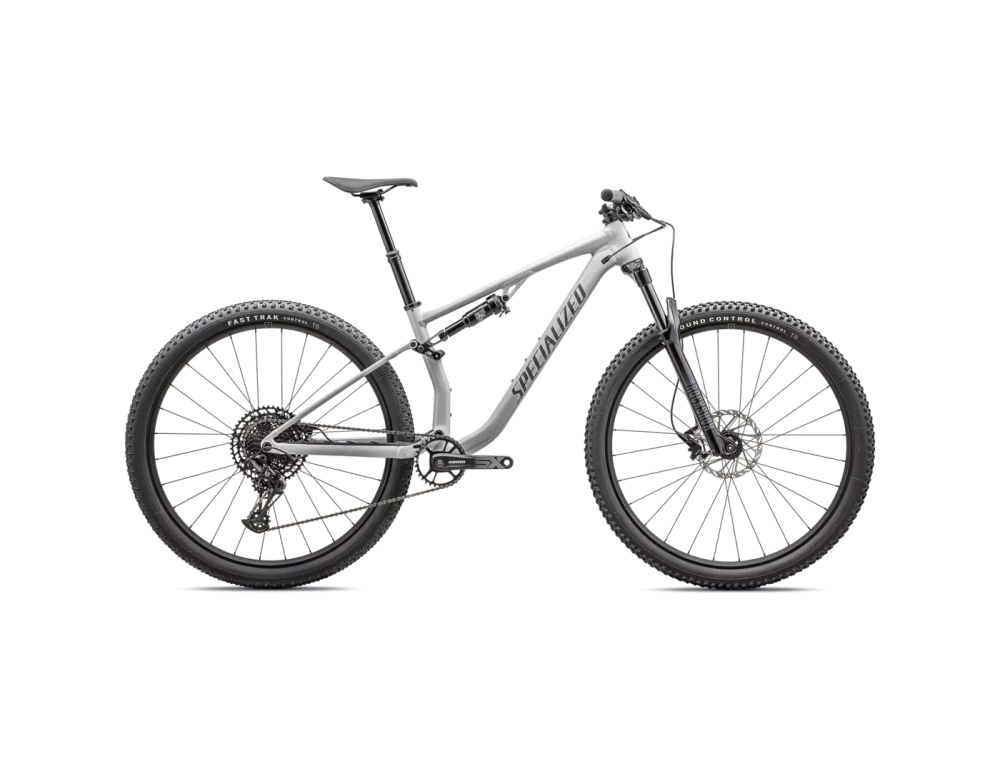

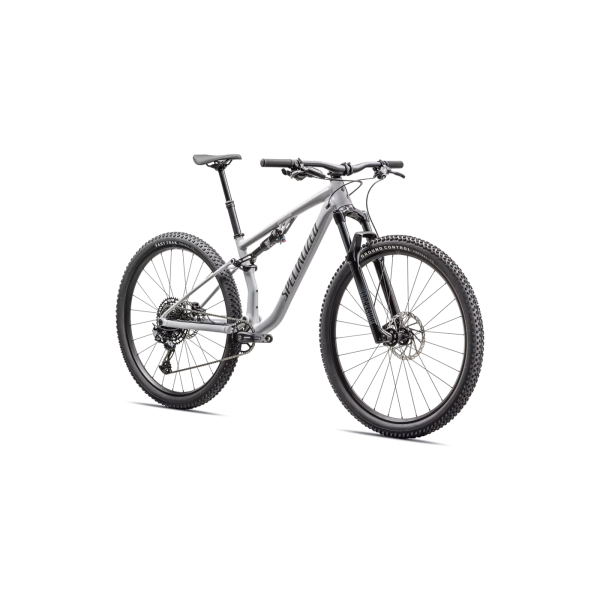

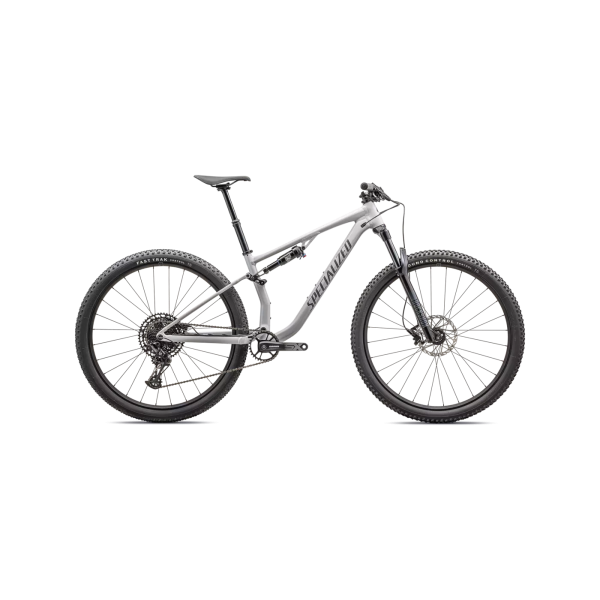

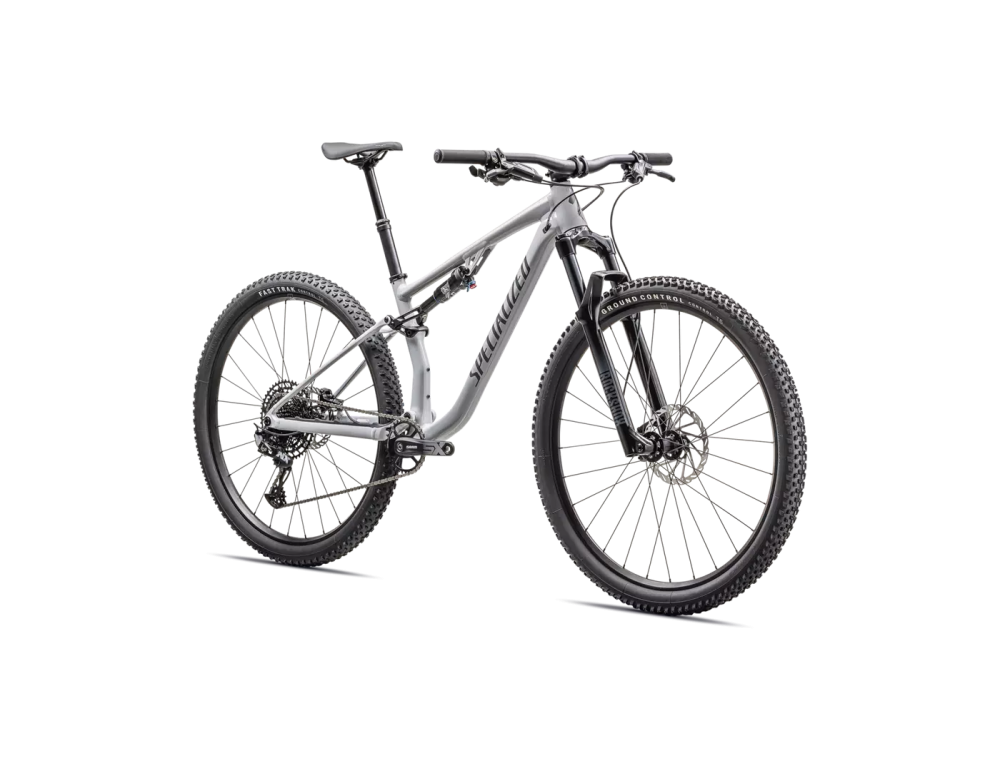

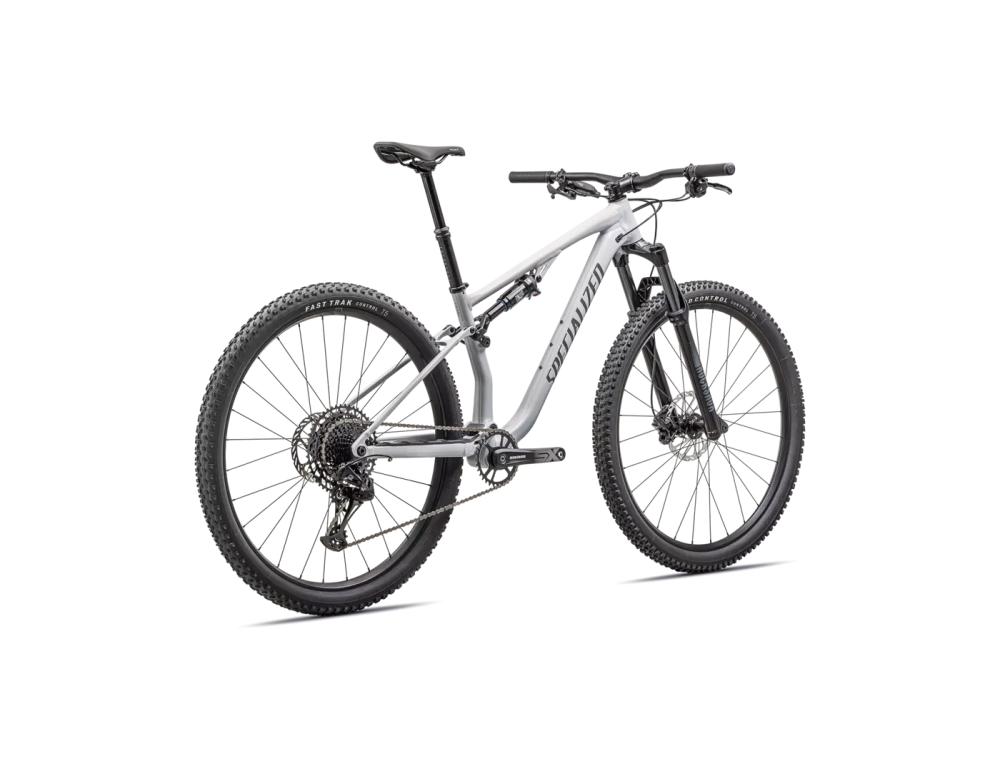

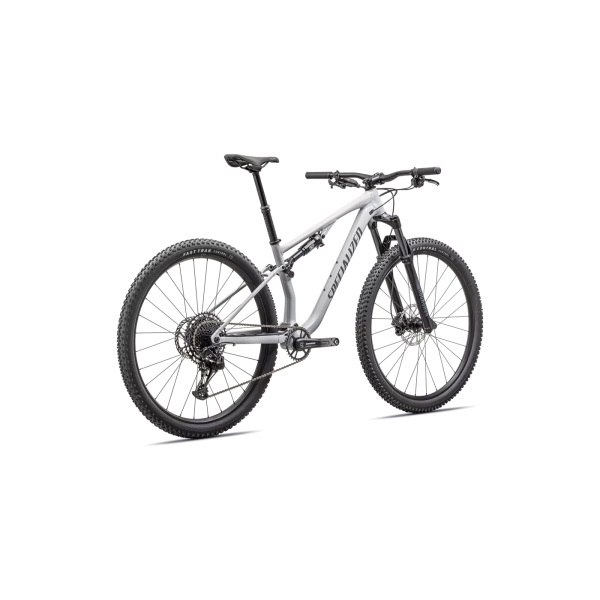

Specialized Chisel
Specialized Chisel
The Lightest, Fastest Alloy Full Suspension Bike in the World. 18.4% lighter than the closest competitor and sharing geometry and kinematics from our World Cup ready Epic 8 mountain bike, the all-new Chisel delivers performance you can feel—whether you’re racing “between the tape” or ripping solo hot laps on local trails.
SPEED METAL: Thanks to D’Aluisio Smartweld, the Chisel boasts the lightest aluminum XC frameset in its class. Each highly-manipulated frame tube features continuously-varied wall thicknesses and shaping that deliver stiffness where you need it - for efficiency - and ride-smoothing compliance where you want it - for comfort and optimal control.
UNMATCHED CAPABILITY: With 110mm of Ride Dynamics tuned suspension, the high performance pedigree of Chisel can be traced directly to the Epic 8, our World Cup race machine. DNA from the Epic 8’s advanced suspension kinematics, Ride Dynamics tuned suspension, and progressive geometry honed on technical World Cup courses can all be found in the Chisel, making it more than capable of handling varied terrain with confidence and speed.
INCREDIBLE EFFICIENCY: Chisel is the most efficient pedaling bike in its class, thanks to the utilization of geometry and kinematics that went into our World Cup racing Epic 8 platform. The steep seat tube positions the rider in the optimal pedaling position. Honed anti-squat reduces pedal-bob. Put it together and Chisel translates every watt applied to the pedals into maximum forward motion.
SMOOTHER IS FASTER: We engineered a flex stay rear end for class-leading suspension performance, while eliminating the extra weight and maintenance associated with pivots required in a traditional design. More common on carbon bikes, extensive field and lab testing prove that Chisel has achieved the impossible—the efficiency, control, and light-weight of a flex stay design, in advanced alloy.
HYDROFORMED ALLOY: Chisel shaves extra material and weight with a one-piece hydroformed seat tube that integrates the seat tube pivot, main pivot, and BB shell. On a more traditional bike, the seat tube is typically just a "tube" with pivots and BB shell welded on.
- Frame - D’Alusio Smartweld hydroformed tubes and engineered tube junctions, Flip chip geo adjust, 110mm travel
- RockShox's Recon 120mm fork, featuring their Motion Control Damper
- Ride Dynamics Tuned X-Fusion rear shock
- TranzX dropper post
- SRAM NX Eagle 12 speed drivetrain
Technical Specifications
- Frame: FRM ,MTB,TRAIL FSR H3.1,29,
- Seat Binder: SEAT COLLAR, KCNC, SPL-SC02-349-02, EXTRUDED, 7075-T73, 34.9MM, 10B21, BLACK ZINC BOLT, BOLT CLAMP TYPE
- Rear Shock: REAR SHOCK, A-PRO X-FUSION, 22-XRNRL190-402, 190MM X 40MM
- Fork: SRAM FS RCNS RL 29 SB 120 BLK FB 42T D1
- Saddle: Body Geometry Power Sport, steel rails
- Handlebars: Specialized Alloy, 20mm rise, 31.8mm, 760mm wide
- Grips: Specialized Trail Grips
- Stem: Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
- SeatPost: TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm
- Rear Brake: SRAM DB LVLT SP SJ GLB R/R DIR 20MM BOLT
- Front Brake: SRAM Level T hydraulic disc, 2-Piston Caliper
- Crankset: SRAM FC SX EAGLE BOOST148 POWERSPLINE 32STEEL
- Rear Derailleur: SRAM NX Eagle, 12-speed
- Cassette: SRAM PG-1210 Eagle, 11-50t
- Bottom Bracket: SRAM Powerspline
- Chain: SRAM SX Eagle, 12-speed
- Shift Levers: SRAM SX Eagle, trigger, 12-speed
- Chainrings: Steel, 30T
- Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- REAR TYRE: FAST TRAK CONTROL 2BR, 29x2.35, T5
- FRONT TYRE: Ground Control, 2Bliss Ready, 29x2.35"
- Rims: SHINING RIM AS-S27,700C,28 HOLES,SLEEVE,NO EYELETS,18.3MM RIM DEPTH,27MM INTERNAL WIDTH,NO MACHINED SIDE WALL,DISC BRAKE,PV
- Front Hub: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Spokes: Stainless, 14g
- Inner Tubes: TUBES,STANDARD 48MM PV LOW LEAD 29x1.75/2.4, MAXXIS BRAND
PRICES
| Option | Price (inc VAT) | Stock |
|---|---|---|
| Colour:Dove Grey, Size:Large | £2,000.00 | In stock |
| Colour:Dove Grey, Size:Medium | £2,000.00 | In stock |
